What Does Flex Slot Mean for HPE Server Power Supplies?

If you see "Flex Slot" in a server specification, it describes a standardized power supply format used primarily in Hewlett Packard Enterprise servers. A Flex Slot power supply is designed to fit a shared bay, connect through a common interface, and be replaced without extensive disassembly. The term does not identify one wattage or one exact model. Instead, it describes a family of compatible power modules with different output levels, efficiency ratings, and input options. Understanding the format helps you choose a replacement that fits your server and supplies enough power for its installed hardware.

What is a Flex Slot Power Supply?

Definition and Overview

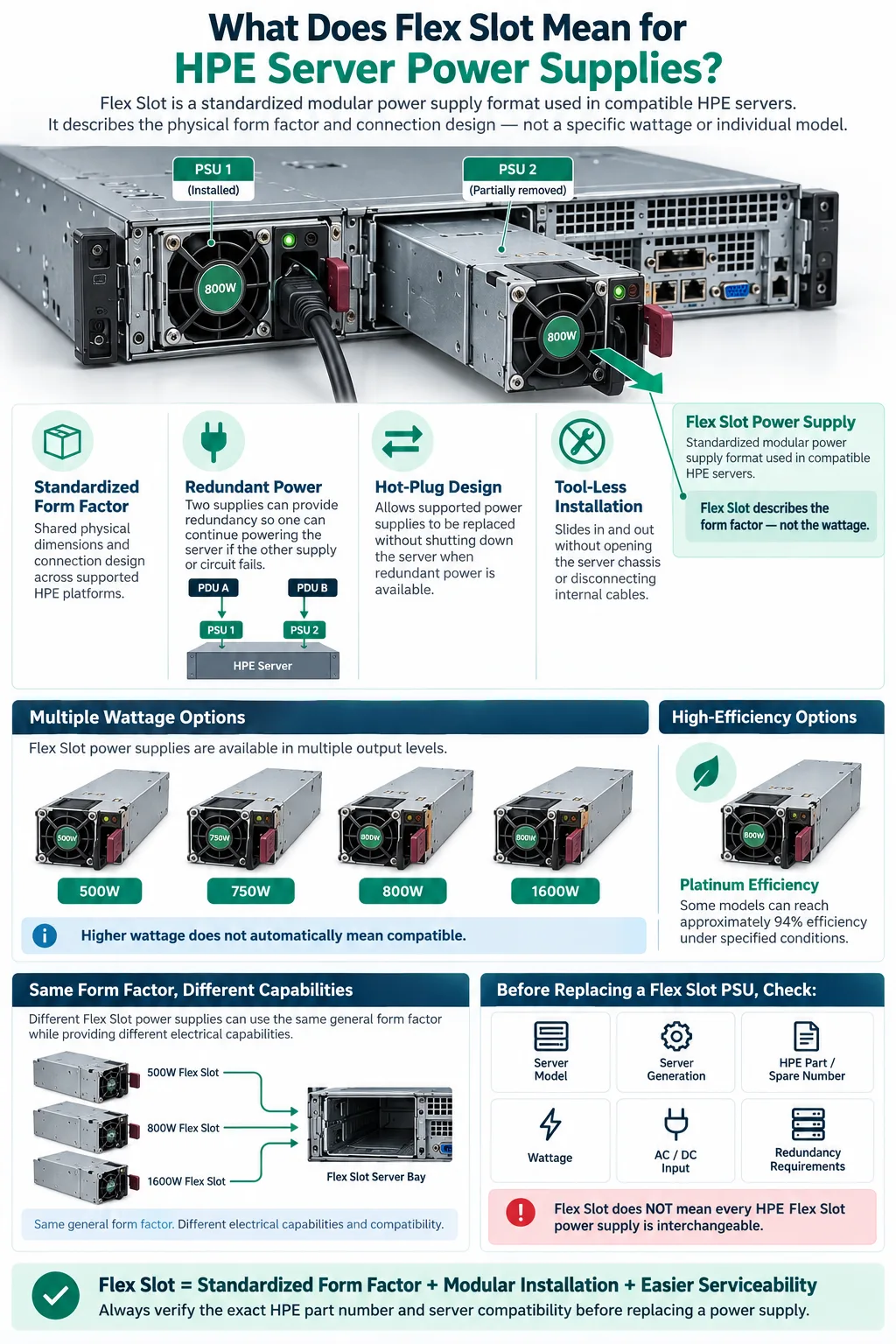

HPE Flexible Slot is a modular power supply design from Hewlett Packard Enterprise. A compatible unit slides into a dedicated bay in an HPE server and connects to the system through a standardized interface. The format covers the module's dimensions, connector position, airflow direction, mounting method, and electrical connection.

Flex Slot identifies the form factor, not necessarily the wattage. For example, an HPE PSU 500W Flex Slot Power Supply and an HPE 1600W Flex Slot Platinum Hot Plug Power Supply can share the same general slot design while serving very different server configurations. You still need to confirm the exact server generation, supported part numbers, and required output before buying a replacement.

Key Features of Flex Slot Design

The design uses a standardized power port and a removable module that normally slides into the rear of the chassis. Many units are designed for hot plug replacement, allowing a failed module to be removed while the server remains powered when another supply is carrying the load. Flex Slot models also use a consistent physical design and electrical design across compatible systems, although compatibility is not universal across every HPE server.

How Does the Flex Slot Design Benefit Servers?

Hot Plug Capability Explained

Hot plug capability lets you replace a supported power module without shutting down the server. This works when the chassis has another functioning supply, the server supports redundant operation, and the replacement procedure follows HPE guidance. A single-supply configuration generally cannot tolerate removal of its only source of power.

Tool-less Installation Advantages

Most Flex Slot modules use tool-less installation. You release the handle or latch, pull the old unit from its bay, and slide the replacement into place. You typically do not need to remove the server cover or disconnect internal cables. The exact latch design varies, so check the server maintenance guide before servicing the unit.

Improved Serviceability and Maintenance

This modular approach reduces the time required to restore a failed server. Technicians can keep spare modules on hand, replace only the failed component, and avoid disturbing memory, storage, or expansion cards. Standardized bays also simplify capacity planning because a server can often be configured with matching supplies at different output levels, provided the platform supports them.

Flex Slot does not remove the need for proper safety practices. Verify the part number, disconnect the correct input source when required, and follow electrostatic discharge precautions. The server's management interface may also report supply status, temperature, input condition, and load information before and after replacement.

Technical Specifications of HPE Flex Slot Power Supplies

Power Output Options and Efficiency

The power output indicates the maximum power the module can deliver under its rated conditions. Common HPE options include 500W, 750W, 800W, and 1600W. Select a rating that exceeds the server's expected load while remaining within the platform's approved configuration. A higher wattage unit is not automatically compatible or necessary.

The efficiency rating describes how much incoming electricity becomes usable DC power rather than heat and conversion loss. Platinum-rated models can reach efficiency levels of up to about 94% under specified load conditions. Actual efficiency varies with input voltage, temperature, and load percentage, so the rating is not a constant figure in every operating scenario.

Input Voltage Compatibility

Many Flex Slot modules support universal input voltage, allowing operation across common AC ranges and, for selected models, supported DC configurations. Check the label and technical documentation because input capability differs by model. A module may require a particular power cord, circuit type, or rack power distribution unit.

Physical and Electrical Design Standards

Flex Slot modules are built around shared dimensions and connection standards for supported HPE platforms. Some models use an iec-60320-c14 input connection, while the exact connector and cord requirement can vary. Confirm airflow direction, connector position, output rating, firmware or platform support, and whether the supply is intended for AC, DC, or both before installation.

Different Models of HPE Flex Slot Power Supplies

500W and 750W Models

The HPE PSU 500W Flex Slot Power Supply is commonly suited to servers with moderate processor, memory, and storage requirements. It can also serve as one member of a paired configuration when the server's total power draw remains within the supported range. A 750W model provides additional capacity for systems with more drives, adapters, or higher-performance processors.

The HPE 750W Flex Slot Hot Plug Battery Backup Module is a related option that adds short-duration ride-through capability in supported systems. Do not assume every 750W module is a battery device. Check the product description and server compatibility list.

800W and 1600W Platinum Models

The HPE 800W Flex Slot Power Supply provides a middle capacity option for systems that need more headroom than a 500W or 750W unit. The HPE 1600W Flex Slot Platinum Hot Plug Power Supply is intended for demanding configurations with high-performance processors, many storage devices, or multiple expansion cards. Its Platinum designation refers to conversion efficiency under defined test conditions, not to a guarantee that it fits every Flex Slot server.

Battery Backup Modules

A battery backup module can provide temporary power when the primary input is interrupted, giving the operating system or server controller time to respond. It is not the same as a building-scale uninterruptible power supply and does not provide unlimited runtime. Confirm supported chassis, battery health requirements, recharge behavior, and replacement intervals before relying on this feature.

How to Identify and Replace a Flex Slot Power Supply

Recognizing Flex Slot Power Supplies

Start with the label on the module. Look for the HPE product name, spare or option number, wattage, input range, efficiency certification, and connector information. The removable rear module usually has a handle or release latch and a shape that matches the server's power bay. Do not identify compatibility from appearance alone. Two modules can look similar but use different ratings or platform support.

Check the server model and generation in HPE's documentation or management interface. The system may list installed supplies and report their serial numbers, status, and capacity. Also inspect the rack's power distribution unit, because the replacement must match the available circuit and cord connection. Keep the original label or part number until the replacement has been verified.

Installation and Replacement Process

Before replacing a server power supply, confirm that the server supports hot replacement and that another supply is online. Review the service guide, wear appropriate electrostatic discharge protection, and verify that the new unit has the approved spare number and equal or greater supported capacity. If redundancy is unavailable, schedule a shutdown.

Release the existing module, pull it straight out, and keep the opening clear. Align the replacement with the guide rails, slide it in firmly, and close the latch. Reconnect the input cord if it was removed. Check the server management interface for normal status, confirm that both supplies share the load when applicable, and monitor alerts after installation. Never force a module into a bay.

Common Use Cases and Applications

Enterprise Server Environments

Flex Slot supplies are common in enterprise racks, virtualization hosts, database servers, storage systems, and infrastructure platforms where downtime is expensive. Their modular format lets an administrator match capacity to the installed processors, memory, drives, and expansion cards. High-efficiency models can also reduce heat output and operating costs when servers run continuously.

They are useful in data centers because standardized modules simplify spares management. A technician can stock approved 500W, 800W, or higher-capacity units for the server families in use instead of keeping a different proprietary design for every chassis. Compatibility still depends on HPE's supported options for each model.

Redundant Power Supply Configurations

A redundant power supply configuration normally uses two or more modules connected to separate power sources. If one supply or circuit fails, the remaining supply can keep the server operating, subject to its capacity and the system's redundancy mode. For stronger resilience, connect the modules to separate rack power distribution units or separate electrical circuits.

Redundancy does not mean unlimited capacity. A server configured for failure tolerance must still have enough available output from the surviving supply. Review the server's power calculator and management alerts, particularly after adding GPUs, storage devices, or network adapters. Also remember that a battery-enabled module supports short-term continuity, but it does not replace proper facility power protection.

Frequently Asked Questions about Flex Slot Power Supplies

Flex Slot is a form factor and serviceability standard, not a universal promise that every HPE module fits every HPE server. The most important checks are the server model, generation, approved spare number, wattage, input type, and redundancy requirements.

Can you mix different Flex Slot wattages?

Some HPE systems support mixed wattages, but others require matching modules or impose limits on the lower-rated supply. Follow the platform documentation rather than relying on the shared Flex Slot shape.

Does Flex Slot mean the supply is hot pluggable?

Many Flex Slot power supplies are hot pluggable, but the server must support hot replacement and have adequate remaining power. Confirm the exact model and chassis before removing a live module.

Is a higher-wattage Flex Slot supply always better?

No. A higher rating may provide useful headroom, but it can be unsupported, unnecessary, or incompatible with the server. Choose an approved option based on measured load and planned expansion.

When you see Flex Slot in an HPE server listing, treat it as a clue about the module's shared form factor and service method. Confirm the exact spare number, wattage, input range, efficiency level, connector, and server compatibility before ordering. If uptime matters, use a properly sized redundant configuration and separate power sources. That approach gives you the main benefits of Flex Slot design: faster replacement, simpler spares management, and more predictable server maintenance.
