HP J9729A 48-Port Gigabit Ethernet PoE+ Layer 3 Managed Switch

Part Number: J9729A     Brand: HP
Free 2-Day
Shipping $99+

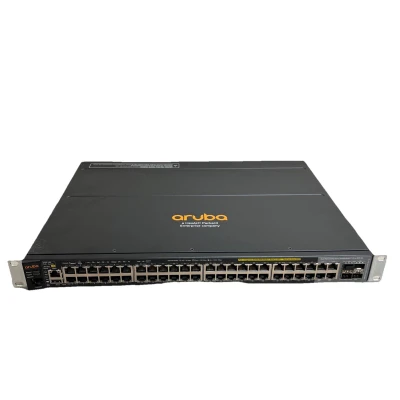

J9729A HP Image

J9729A Price

Refurbished Condition · Ready to Ship
$114.00 $118.75
★ 6% Off Applied at Checkout
★ Free US 2-Day Express Shipping Over $99
Condition
Quantity

HP J9729A Specs

▲
Product Type
Layer 3 Managed Network Switch
Manufacturer
Hewlett Packard Enterprise (HPE)
Brand
HPE Aruba
Series
Aruba 2920 Switch Series
Model
2920-48G-PoE+
Form Factor
Rack-mountable
Stackable
Yes (up to 4 switches in a single virtual device, with optional stacking module J9733A)
Management
Web-based management, Command Line Interface (CLI), SNMP v1/2c/3, RMON, Telnet, DHCP, VLAN, MIB, sFlow, OpenFlow (for SDN)
Total Ports
48
Network Ports
44 x 10/100/1000BASE-T RJ-45 autosensing PoE+ ports (IEEE 802.3at)
4 x 10/100/1000BASE-T RJ-45 dual-personality PoE+ ports (shared with SFP ports)
Uplink Expansion Slots
2 x Module Slots (for optional 10 Gigabit Ethernet SFP+ or 10GBASE-T RJ-45 modules, e.g., J9731A, J9732A)
1 x Stacking Module Slot (requires J9733A stacking module)
Management Ports
1 x Dual-personality (RJ-45 or USB micro-B) console port
1 x USB 1.1 port
1 x RJ-45 out-of-band management port
Switching Capacity
176 Gbps
Throughput
130.9 Mpps (million packets per second)
Latency 64-byte packets
< 9.0 µs
< 3.2 µs
< 3.2 µs
MAC Address Table Size
16,000 entries
Routing Table Size
2,048 entries (IPv4), 256 entries (IPv6)
Packet Buffer Size
11.25 MB (6.75 MB dynamic egress + 4.5 MB ingress)
PoE+ Support
Yes (IEEE 802.3at)
PoE Power Budget
370 W
Power Supply
1 x internal power supply included (e.g., J9738A 575W)
Input Voltage
100-240 VAC, 50/60 Hz
Maximum Power Rating
487 W
Idle Power
46 W
Maximum Heat Dissipation
420.95 kJ/hr (399 BTU/hr)
Processor
Tri Core ARM1176 @ 625 MHz
SDRAM
512 MB
Flash Memory
1 GB
Routing Protocol
RIP (Routing Information Protocol), static IP routing
IPv6 Support
IPv6 Host, Dual Stack (IPv4/IPv6), MLD Snooping
ECMP Equal-Cost Multi-Path
Supported for static IP routing
Authentication Method
RADIUS
Features
DoS attack prevention, ACLs (Access Control Lists), sFlow
QoS
Traffic prioritization (IEEE 802.1p), L4 prioritization (based on TCP/UDP port numbers), Class of Service (CoS), Rate Limiting, Large buffers for congestion management.
Dimensions H W D
4.39 x 44.25 x 33.6 cm (1.73 x 17.42 x 13.23 in)
Weight
Approximately 5.7 kg (12.57 lb)
Operating Temperature
0°C to 55°C (32°F to 131°F)
Operating Humidity
15% to 95% (non-condensing)
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Storage Humidity
15% to 95% (non-condensing)
Operating Altitude
Up to 3 km (10,000 ft)
Acoustic Noise
Power: 62 dB, Pressure: 45.2 dB
Safety Certifications
UL 60950-1, CSA 22.2 No. 60950-1, EN 60950-1, IEC 60950-1, EN/IEC 62368-1
Electromagnetic Emissions
FCC Part 15 Class A, EN55022 Class A, CISPR32 Class A, ICES-003 Class A, VCCI Class A
Environmental Compliance
RoHS
Energy Efficiency
80Plus.org Silver certified
Network Technology
Gigabit Ethernet
Port Count
48 ports
Port Interface
RJ-45
Port Speed
10/100/1000 Mbps
Switching Layer
Layer 3
PoE Support
IEEE 802.3at PoE+
Uplink Port Count
4 Uplink Ports
Uplink Interface
SFP
Management Type
Managed
Stacking Support
Virtual Switching Framework (VSF)
Rack Height
1U (1 RU)
Active Port Count
48 active ports

HP J9729A Description

▼

The HPE Aruba J9729A 2920-48G-PoE+ is a robust and scalable Layer 3 managed network switch designed for demanding enterprise edge, SMB, and branch office environments. It features 48 Gigabit Ethernet ports, including 44 Power over Ethernet Plus (PoE+) enabled RJ-45 ports and 4 dual-personality RJ-45/SFP ports, providing flexible connectivity and power for devices like IP phones, wireless access points, and security cameras with a 370W PoE budget.

Engineered with a powerful ProVision ASIC, this switch delivers high performance with 176 Gbps switching capacity and 130.9 Mpps throughput, ensuring low latency and efficient data flow. It supports modular stacking (up to 4 switches), allowing for "pay as you grow" scalability and simplified management.

Additionally, the J9729A offers advanced Layer 3 capabilities, including static and RIP routing, along with comprehensive security features like ACLs, DoS attack prevention, and sFlow for enhanced network control and visibility. Its support for OpenFlow also optimizes it for Software-Defined Networking (SDN) deployments, making it a versatile and future-ready solution for modern network infrastructures.
